Zhangjiagang Kingkangda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of fancy twisting machine ring bobbin dual color in China, also supports customized service. If you're going to wholesale durable fancy twisting machine ring bobbin dual color made in China, welcome to get quotation from our factory.
The Fancy Twisting Machine Ring Bobbin Dual Color is one of our company's best-selling products. It not only offers excellent value for money but also has high production efficiency. In addition, it can produce both two-color and single-color yarns. The yarn quality is stable and the style is exquisite, which is deeply loved by customers. This machine is also equipped with a full set of servo motors and a PLC control system that can effectively detect the current production status of the machine.
Technical Features

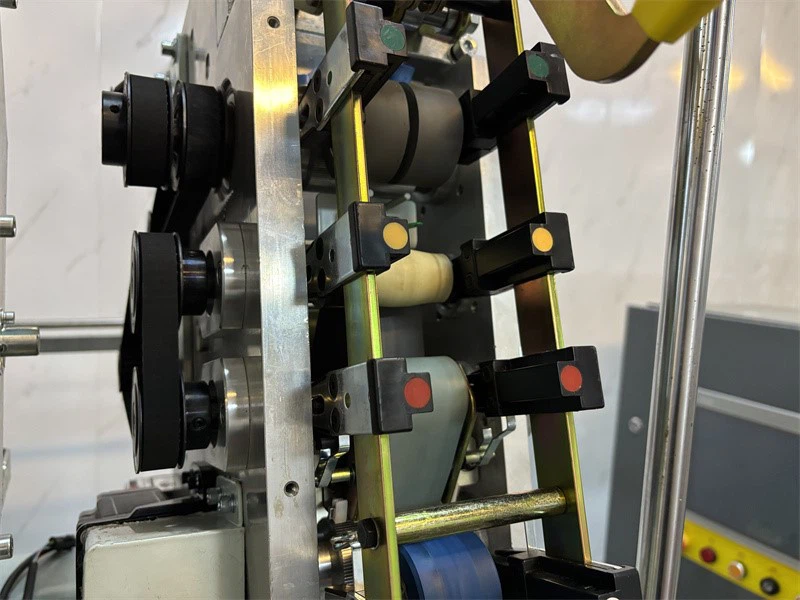

Dual-Color Roving Feeding
Compared to single-color feeders, the dual-color feeder significantly improves production, yarn variety, and style by utilizing an additional feed system. It can simultaneously produce two colors, alternating to create yarns of varying colors and styles. Increasing overfeed also boosts overall yarn production. The resulting yarn is light and aesthetically pleasing.

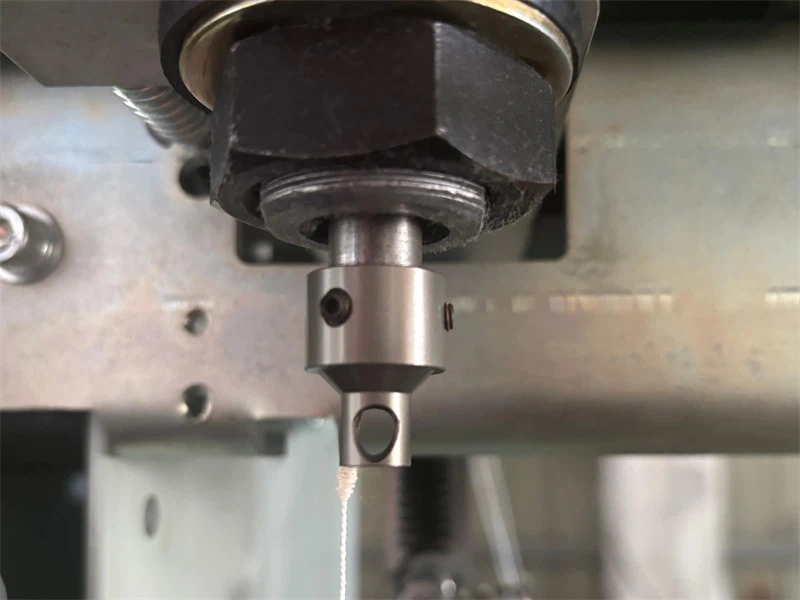

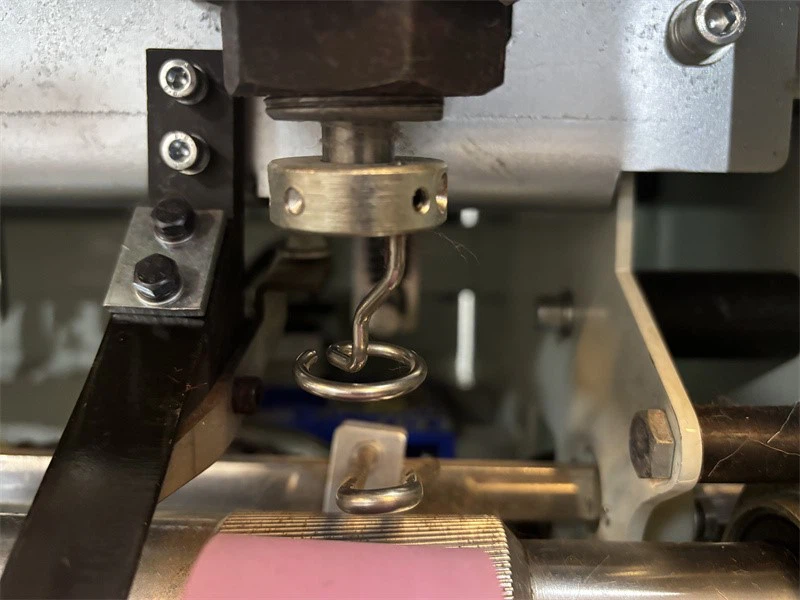

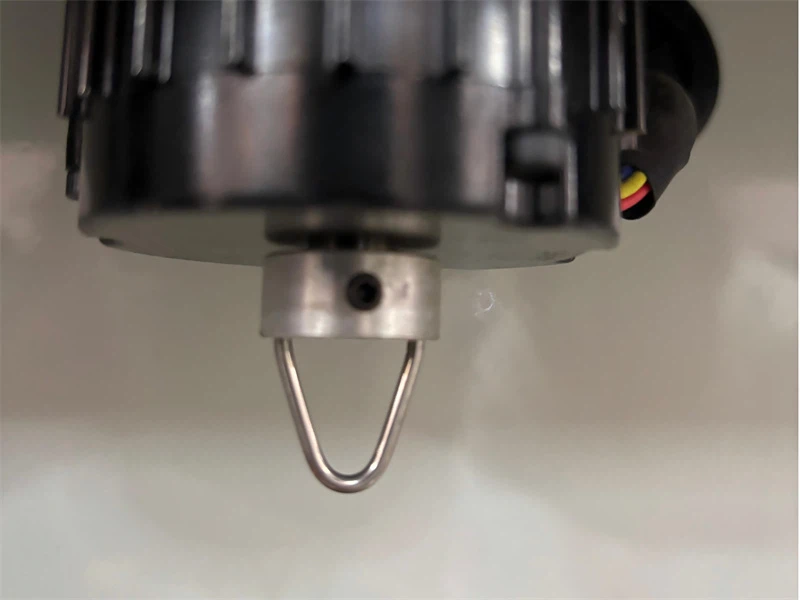

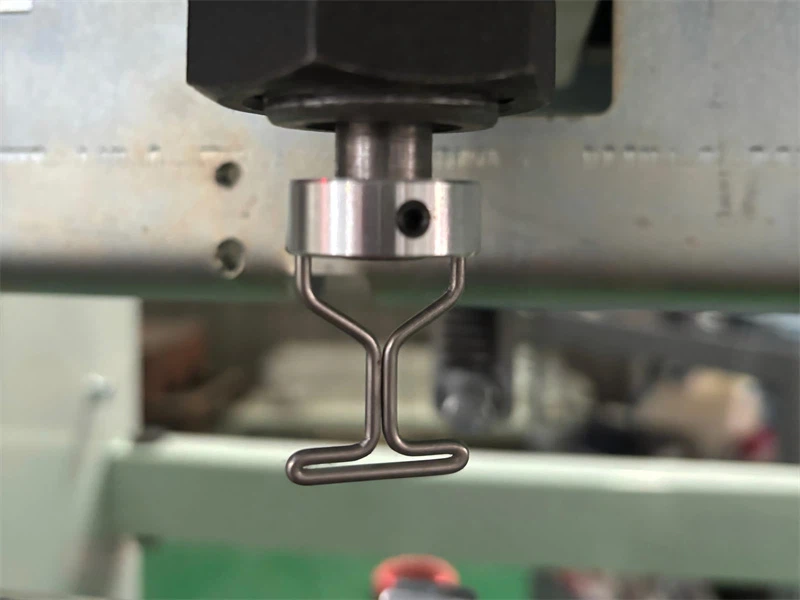

Multiple Twisting Hook Designs
Our chenille machines are equipped with twisting hooks in a variety of sizes and shapes, allowing users to flexibly choose based on different yarn types, thicknesses, and production process requirements. The twisting hooks differ primarily in hook shape, material hardness, and surface treatment, meeting the processing requirements of a wide range of yarns, from fine denier to coarse yarns, and from cotton to synthetic fibers.
Independent Servo Drive
This machine is fully controlled by servo motors, which can effectively and accurately control the production speed of yarn. In addition, the motor can save energy to the greatest extent. Compared with traditional asynchronous motors, it can save 10 to 20 percent of energy consumption, greatly saving production costs and increasing production efficiency.
PLC Touchscreen Control
The control system of this machine realizes highly intelligent production. Users can not only store dozens of yarn production formulas on the touch screen, but also monitor the operating status of each spindle machine and query historical fault codes in real time through the screen, effectively saving a lot of manpower.
Wide Fiber Compatibility
The fancy twisting machine is suitable for a wide range of fibers, including man-made and natural fibers of all lengths. It is suitable for spinning high-count fancy yarns with high hair content, such as wool, mohair, cashmere, angora, alpaca, and yak. Examples include boucle, wavy, slub, and knot yarns. Suitable fiber lengths range from 38 to 196 mm.
Main Technical Parameters
|
Parameter |
Unit |
Specification |
|
Spindles Gauge |
mm |
200 |
|
Number of Spindles |
set |
160 |
|
Hollow Spindle Speed |
rpm |
12000 |
|
Ring Spindle Speed |
rpm |
6000 |
|
Front Roller Speed |
m/min |
75 |
|
Drafting Ratio |
/ |
0-100 |
|
Fiber Length |
mm |
38-195 |
|
Roving |
g/m |
0.25-2 |
|
Core Yarn |
NM |
1-120 |
|
Basic Yarn |
NM |
1-120 |
|
Twist range |
t/m |
120 to 1250 |
|
Twist direction |
/ |
S or Z changeable |
|
Dust Collection |
/ |
Optional |
|
Power |
KW |
38 |
|
Overall Dimension (Length*width*height) |
mm |
27800*1960*2300 |
FAQ
Q1: Is operator training included?
A1: Yes. We provide comprehensive training for operators, covering machine operation, safety protocols, and routine maintenance to ensure smooth production.
Q2: What after-sales support do you offer?
A2: Our support includes remote troubleshooting, technical guidance, spare parts supply, and on-site service if required, ensuring minimal downtime and long-term stable operation.
Q3: Are spare parts readily available?
A3: Yes. We maintain a stock of key components and can ship spare parts quickly to reduce production interruptions.
