Zhangjiagang Kingkangda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of ring spindle bobbin dual color fancy twisting machine in China, also supports customized service. If you're going to wholesale durable ring spindle bobbin dual color fancy twisting machine made in China, welcome to get quotation from our factory.

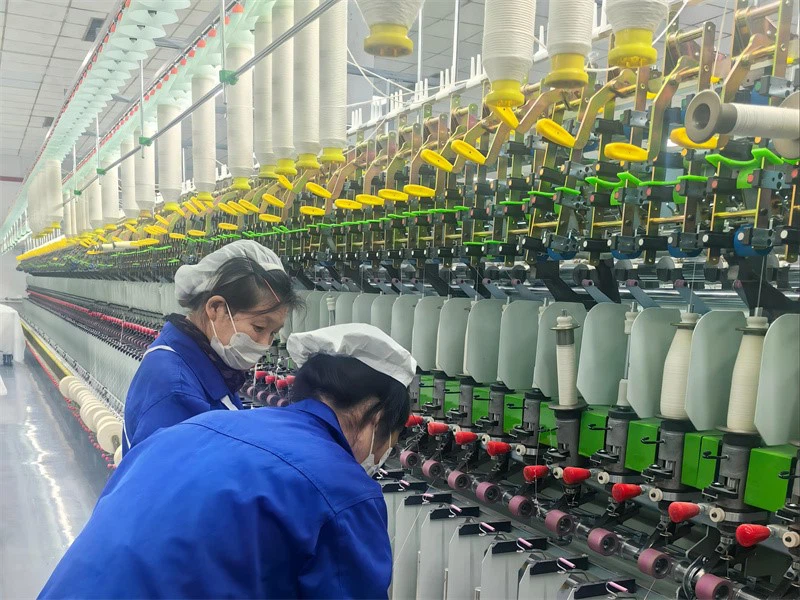

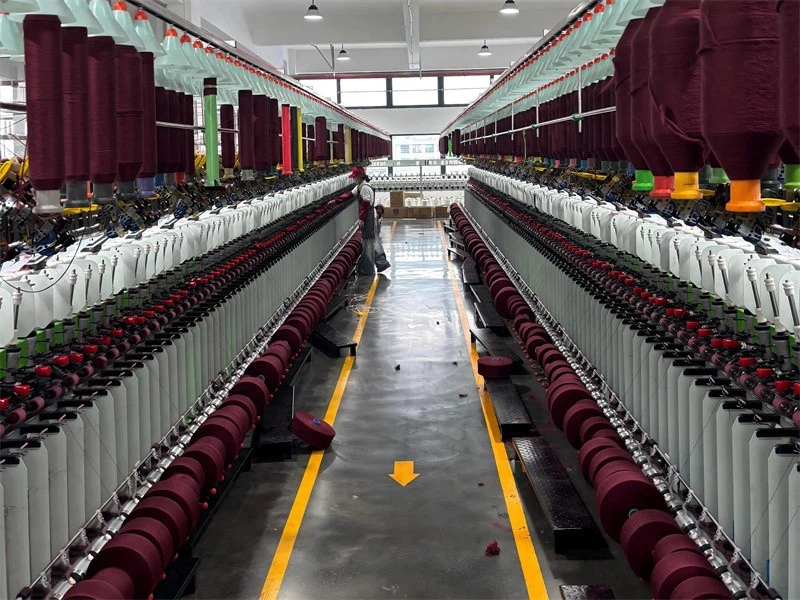

The Ring Spindle Bobbin Dual Color Fancy Twisting Machine stands out with its dual take-up configuration - ring spindle and fluted bobbin - offering unmatched adaptability for a wide variety of fancy yarn constructions. This dual winding system allows for precise tension control and flexible yarn shaping, supporting everything from firm, compact winding to soft, voluminous textures. It gives manufacturers the freedom to tailor yarn characteristics based on specific application requirements, from refined knitting yarns to bold decorative threads.
With its dual-color roving feeding system, this machine enables more dynamic visual effects, including sharp color contrast, smooth gradients, and layered yarn structures. Whether you aim to produce sophisticated two-tone slub yarns or creative multi-color textures, this machine offers reliable support.
Technical Features
Dual Winding System
This machine features both ring and drum winding systems, seamlessly adapting to various yarn types and production requirements. Ring winding provides a robust and precise winding ideal for fine and medium count yarns, while drum winding excels at handling coarse and fancy yarns with consistent tension control. This versatility minimizes yarn defects such as slack, breakage, and uneven winding.
Collective Drive Control
1. Simple Structure and Lower Cost
All spindles are driven by a single main motor, sharing the drive system. This reduces the number of motors and control modules, lowering overall manufacturing and procurement costs.
2. Easy Maintenance
Because the drive system is centralized and the number of motors is reduced, routine maintenance and inspection points are reduced, resulting in lower maintenance costs.
3. Unified Speed Control
Suitable for applications requiring high yarn consistency. All spindles operate synchronously at the same speed, reducing errors caused by manual adjustments.
4. More Suitable for Standardized Production
When producing single specifications and large batches, collective drive ensures consistency and simplifies management.

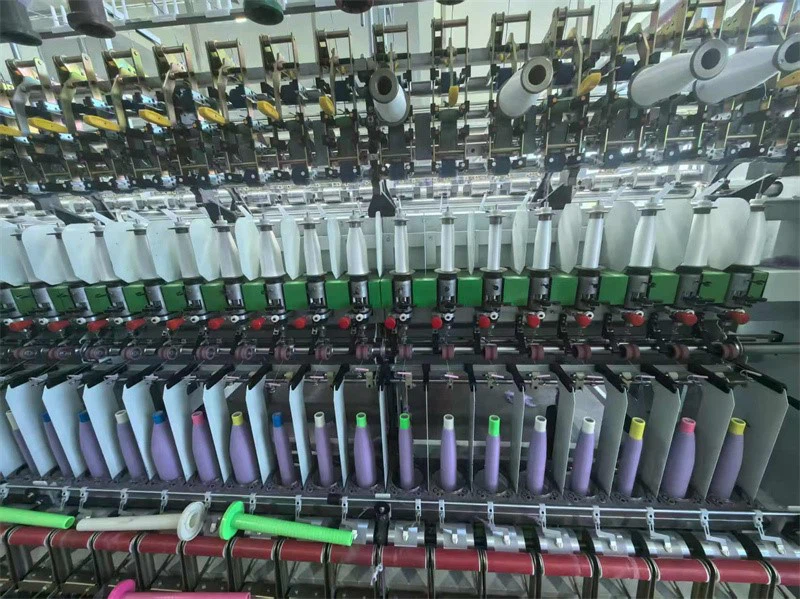

Four-Roller Drafting System with Air Bubble Roller
1. Eliminating Yarn Balloons / Air Bubbles
During the drafting and twisting process, air bubbles, or small air bubbles, form, affecting yarn surface uniformity. The bubble roller helps eliminate these bubbles by squeezing and stabilizing the yarn, ensuring uniform yarn evenness.
2. Stabilizing the Fiber Bunch and Preventing Backtwist
The bubble roller, located between the front and rear rollers, effectively controls fiber bundle movement, preventing draft instability caused by backtwist and uneven yarn thickness.
3. Reduce fiber slippage and improve drafting accuracy
During high-speed drafting, fibers are prone to slippage or scattering. Bubble rollers maintain fiber tension by increasing contact points, ensuring a precise draft ratio.
4. Improved yarn evenness
Due to more even fiber stress distribution during the drafting process, yarn evenness, smoothness, and structural stability are significantly improved.
PLC Digital Control with Collective Servo Motors
1. Strong synchronization and consistency: All spindles are driven by a single servo reference clock, minimizing speed deviation and ensuring greater pattern consistency.
2. Fast adjustment and switching: PLC recipe management supports one-click access to process parameters (speed, tension, pitch, etc.), reducing changeover time.
3. Faster and more stable response: Servo closed-loop control with digital filtering provides low overshoot and low ripple, making it suitable for high-speed, long-term continuous production.
4. Maintenance-friendly: Centralized drive shortens the drive chain and reduces fault points; the PLC provides alarm codes and trend logging for quick location identification.
5. Digital management: Expandable networking and data collection allow for statistical analysis of production, downtime, and energy consumption, providing a basis for process optimization and quality traceability.
Main Technical Parameters
|
Parameter |
Unit |
Specification |
|
Spindles Gauge |
mm |
150 |
|
Number of Spindles |
set |
200 |
|
Hollow Spindle Speed |
rpm |
12000 |
|
Ring Spindle Speed |
rpm |
6000 |
|
Front Roller Speed |
m/min |
75 |
|
Drafting Ratio |
/ |
0-100 |
|
Fiber Length |
mm |
38-195 |
|
Roving |
g/m |
0.25-2 |
|
Core Yarn |
NM |
1-120 |
|
Basic Yarn |
NM |
1-120 |
|
Twist range |
t/m |
120 to 1250 |
|
Twist direction |
/ |
S or Z changeable |
|
Dust Collection |
/ |
Optional |
|
Power |
KW |
38 |
|
Overall Dimension (Length*width*height) |
mm |
27800*1960*2300 |
FAQ
Q1: Can you provide references or case studies?
A1: Certainly. We have successful case studies across home textiles, apparel, and carpet industries. Our clients often report higher productivity, reduced waste, and improved yarn quality after using our machines.
Q2: Do you support customized solutions for clients?
A2: Yes. We can customize machine configurations, feeding systems, and control settings to meet specific production needs, helping clients stay competitive and innovative in their markets.
Q3: How does Kingkangda build trust with clients?
A3: Through high-quality equipment, professional technical support, timely after-sales service, and transparent communication, we build long-term relationships with our clients worldwide.
