Zhangjiagang Kingkangda Machinery Co., Ltd. is one of the leading manufacturers and suppliers of ring spindle dual color fancy twisting machine in China, also supports customized service. If you're going to wholesale durable ring spindle dual color fancy twisting machine made in China, welcome to get quotation from our factory.
The Ring Spindle Dual Color Fancy Twisting Machine combines centralized drive technology with dual-roving feeding capability, enabling the production of both single-color and dual-color fancy yarns. It features a ring spindle winding system that delivers high-density, low-tension take-up, significantly minimizing yarn defects such as slippage or loose winding. This ensures excellent yarn structure and consistent surface appearance, especially for complex fancy yarns like loop, slub, and multi-tone effects.
Compared to single-spindle control models, the collective drive simplifies synchronization and reduces maintenance, making it ideal for mid- to large-scale continuous production. The machine supports a wide range of fibers including wool, mohair, alpaca, and synthetic blends. With its reliable mechanical design, flexible color feeding, and energy-efficient operation, it meets the diverse needs of modern fancy yarn manufacturers seeking both quality and efficiency.
Technical Features
Centralized Drive System
This machine utilizes a centralized drive system, which significantly reduces design and manufacturing costs, as well as equipment maintenance costs, compared to a monolithic design. This design ensures synchronized and stable operation of the spindles throughout the production line, ensuring consistent yarn quality and significantly improving yarn production efficiency.
Ring Spindle Winding System
This machine is equipped with a high-precision ring winding system, ensuring compact, smooth, and uniform yarn collection while producing finished yarn. This ring winding method features yarn detwisting, which removes twist and balances the yarn internally, directly impacting yarn quality. This ring winding process minimizes yarn defects, such as yarn distortion caused by excessive twist and uneven yarn tension.
Two-Color Roving Feeding System
This machine is equipped with a two-color feeding system, which not only supports single- and two-color rovings but also enables the production of complex and exquisite multi-color fancy yarns tailored to yarn manufacturers' needs, enhancing the visual aesthetics and market value of textiles.

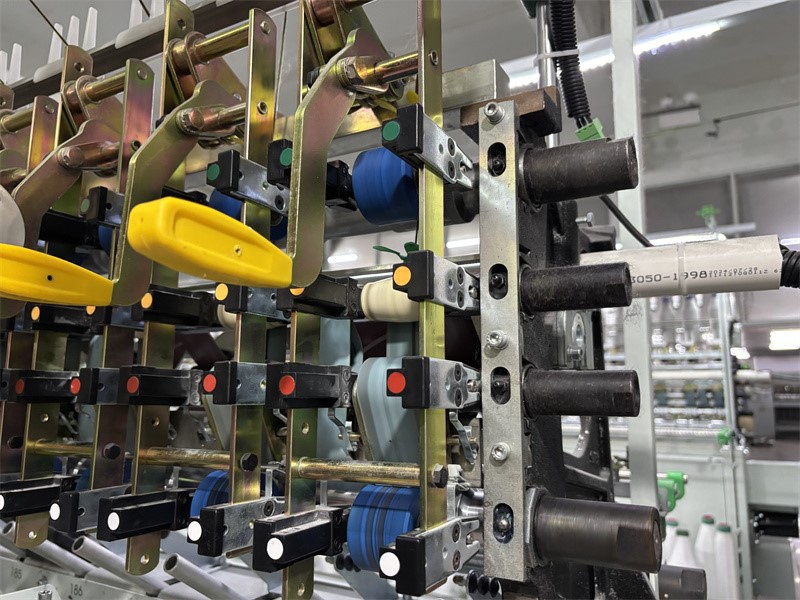

Core yarn guide grooves on the metal front rollers
The reliable metal front rollers are equipped with double core yarn guide grooves. This design ensures smooth and reliable transport of the core yarn during production, preventing yarn slippage or misalignment during twisting. This device significantly improves the stability and consistency of the quality of complex fancy yarns.
With centralized servo motor and PLC control system
The integrated PLC digital communication system and centralized servo motor control enable precise and synchronized adjustment of spindle speed and yarn tension. This advanced control console significantly improves production stability, simplifies traditional physical key machine operation, and ensures simultaneous control of twist quality and yarn evenness for all spindles.
Sturdy 90-degree
gantry frame
The 90-degree upright angle provides comfortable operation for everyday yarn production. This reduces vibration when changing roving, making production easier for operators. The sturdy gantry design of the frame ensures exceptional quality and reliability. This structure effectively ensures long-term stable and reliable production.
Maximum Number of Spindle
This machine is equipped with a maximum of 200 spindles, making it ideal for large-scale yarn production requiring high output and consistent yarn quality.
High Output, Cost-Efficient
This machine is designed for efficient and complex production of fine and fancy yarns, combining high productivity with energy-efficient operation and low factory operating costs. It is an ideal choice for manufacturers seeking to further enhance yarn quality and optimize profitability.
Main Technical Parameters
|
Parameter |
Unit |
Specification |
|
Spindles Gauge |
mm |
130 |
|
Number of Spindles |
set |
200 |
|
Hollow Spindle Speed |
rpm |
12000 |
|
Ring Spindle Speed |
rpm |
6000 |
|
Front Roller Speed |
m/min |
75 |
|
Drafting Ratio |
/ |
0-100 |
|
Fiber Length |
mm |
38-195 |
|
Roving |
g/m |
0.25-2 |
|
Core Yarn |
NM |
1-120 |
|
Basic Yarn |
NM |
1-120 |
|
Twist range |
t/m |
120 to 1250 |
|
Twist direction |
/ |
S or Z changeable |
|
Dust Collection |
/ |
Optional |
|
Power |
KW |
38 |
|
Overall Dimension (Length*width*height) |
mm |
27800*1960*2300 |
